Top-quality profiles that effectively meet real needs

As the official distributor in Hungary, our aim is to help you choose the profile that is truly appropriate for the intended function, as well as the dynamic and the static load of the industrial floor.

To handle the increasing industrial floor loads without any problems, conventional steel profiles in most cases do not offer acceptable solutions, or only at a considerable compromise.

Cosinus Slide

Cosinus slide



HCJ Cosinus Slide dilatácios acél profil

E-Slide Profiles

E-Slide



HCJ E-Slide dilatációs acél profil

E-Straight

E-Straight



HCJ E-Straight dilatációs acél profil

Omega 3mm

Omega 3mm for Outside Use



Omega 3mm dilatation profile with rubber outdoors

The steel profiles available in the HCJ range actively help to achieve the desired dynamic as well as static load transfer. Choosing the right profiles can not only provide technical benefits, but can also contribute to faster, safer traffic throughout the life of the floor.

References

0 Million
Implemented continuous meters of expansion joints
0
Project globally
hcj-references-globally
toyota-logo

I undersigned, Andre Van Dael, am pleased to confirm my satisfaction with the corrugated joints manufactured by Hengelhoef Concrete Joints and installed in our distribution centre in Diesi, Belgium.

These kinds of joints are a very good solution for our heavily loaded and intensely trafficked aisle ways.

The corrugated surface from steel and concrete ensures a shock free transfer between the floor slabs due to the continuous support of passing wheels. By neutralising the striking impact of the wheels, forklift drivers experience unprecedented comfort and any risk of damages to vehicle or to the floor slab is significantly reduced.

In comparison with other armoured straight joints or steel angles exposed to the same loads and traffic and in the same circumstances, the corrugated joints are an efficient and sustainable improvement. Your Content Goes Here

André van Dael, Maintenance & Facility Assistant Manager, Toyota Parts Center Europe

Enjoy the benefits of our premium HCJ dilatation joints by reducing industrial floor thickness – while increasing longevity and quality.

Table showing the differences between HCJ dilatation joints and traditional joints

Dilatation Profiles

Cosinus Slide Profile

The top-quality Cosinus Slide® steel profile is clearly HCJ’s flagship product, able to meet all the demands and quality requirements that arise.

The Cosinus Slide® profile is recommended for all customers looking for a high quality, uncompromising dilatation profile, that ensures maximum load from traffic.

  • Unbound shelf organization

  • Maintenance-free
  • Longer life of forklift wheels

  • Continuous load transfer between the plates

  • Significantly reduces curling

Dilatation Profiles

E-Slide Profile

E-slide steel profiles are the perfect solution in cases where the high-tech Cosinus Slide is not required.

The main advantage of E-slide profiles is that, in addition to their outstanding quality, they are also extremely economical, offering significantly better performance in all parameters at a price close to that of conventional straight profiles.

  • Shock-free forklift passage and associated wheel protection, lower maintenance costs.

  • Excellent protection at the edges of the floor plate (no ” sharp ” impact).

  • Significantly lower profile weight, less than 9 kg/m.

  • It is the most economical solution up to 200mm floorboard thickness (it offers significantly better performance in all parameters at a price close to that of a conventional straight profile).

HCJ E-Slide dilatációs acél profil
hcj-references-globally

Dilatation Profiles

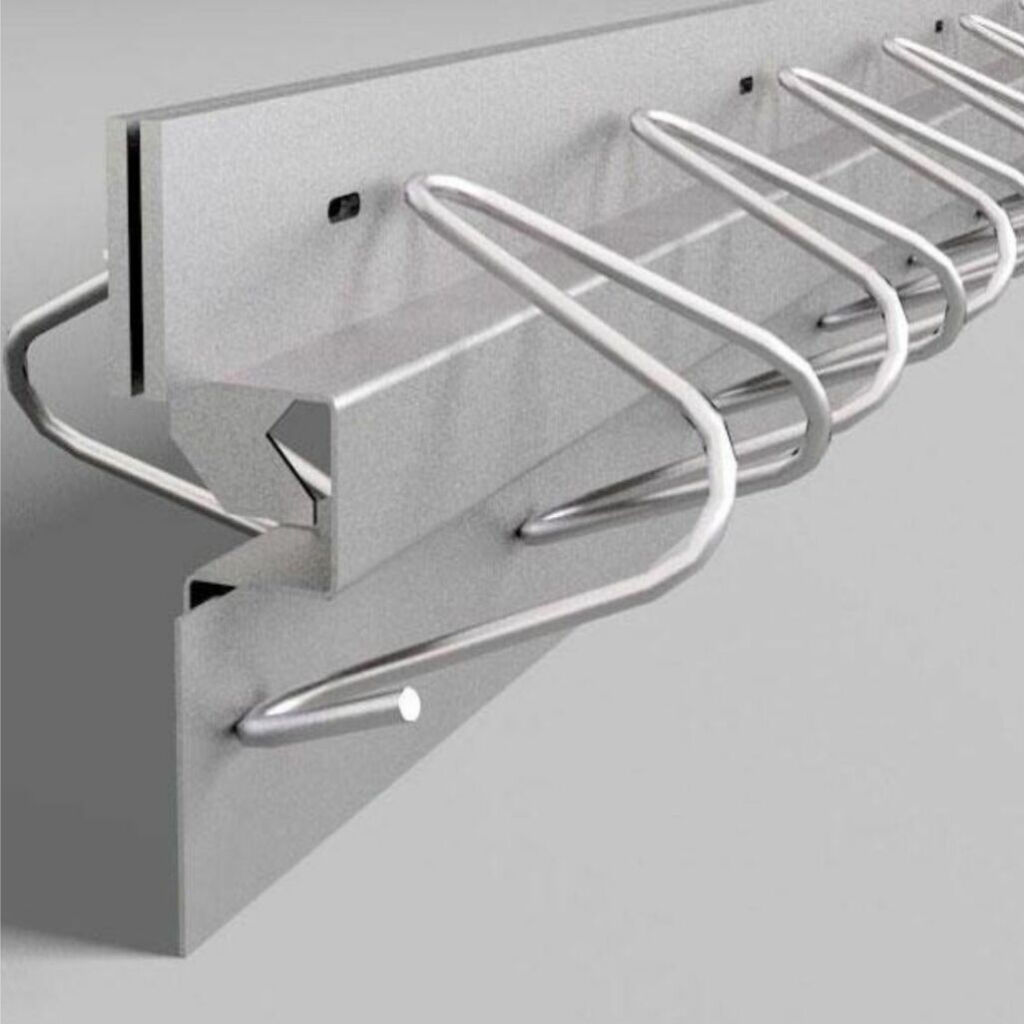

E-Straight Profile

E-straight expansion profiles are recommended for moderate loads, in which case this profile also offers a perfectly satisfactory solution.

  • For low and medium loads, and for floor thicknesses of 140-200 mm.

  • It allows a higher load transfer (up to +60%) compared to a conventional profile.

  • The wave-anchor system along the entire length of the profile is capable of continuous load transfer.

  • It eliminates the now obsolete under-performance of intermittently placed load transfer plates and the resulting increased floor edge failures.

Dilatation Profiles

Omega 3mm Expansion Joint Profile for Outdoors

Omega 3mm is one of the highest quality outdoor expansion profiles available, despite its low price, and can meet the needs of the application for a long time. Choose Omega 3mm, the perfect outdoor expansion profile to achieve the right quality.

  • Maintenance-free
  • The wave-anchor system along the entire length of the profile is capable of continuous load transfer.

  • Guarantee a long-lasting floor, even outdoors.

HCJ E-Slide dilatációs acél profil

Watch our webinar about the innovative HCJ joints

The Cosinus, E-Slide, E-Straight, and Omega 3mm profiles produced by HCJ, described above, are matched profiles that can be used in a system: on request, we will carry out the structural calculations that justify their applicability, free of charge, provided that the load data are available.
